10 x 3 Pent Roof Leisure Log Cabin Price From: £7,577.84



10m x 3m Leisure Log Cabin Specification

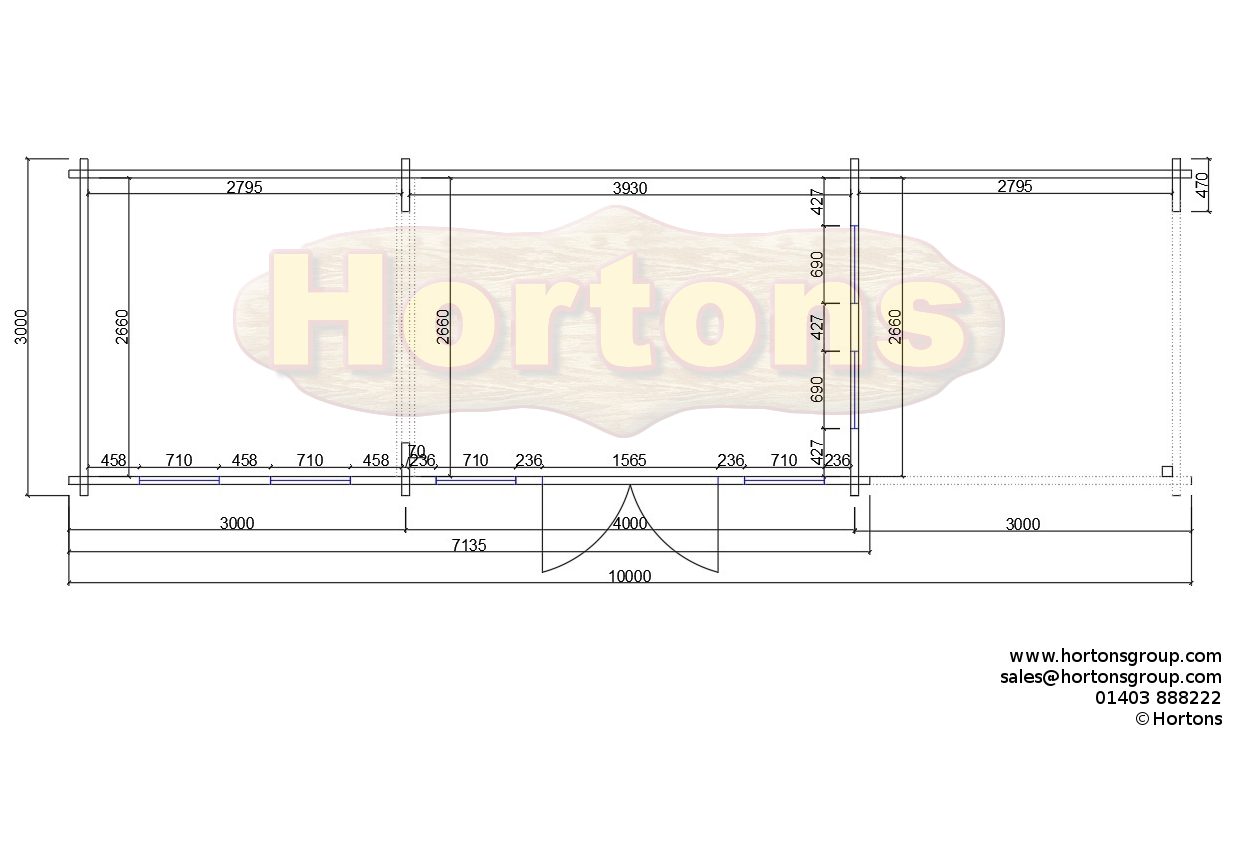

Log Cabin Dimensions

  • Overall cabin width : 10m
  • Overall cabin depth excluding roof canopy : 3m
  • Minimum base width required : 9.8m
  • Minimum base depth required : 3.8m
  • Rear wall height : 2.3 m
  • Front wall height : 2.5 m
  • Front roof canopy : 0.0 m
  • Side roof canopy : 3.0 m wide
  • T&G roof board thickness : 19mm
  • T&G floor board thickness : 19 mm

Also Included With This Log Cabin

  • Double glazed double doors, fully glazed 1855x1565mm : 1
  • Double glazed fixed full height sidelight windows 1855x690mm : 2
  • Double glazed single windows 1480x710mm : 4

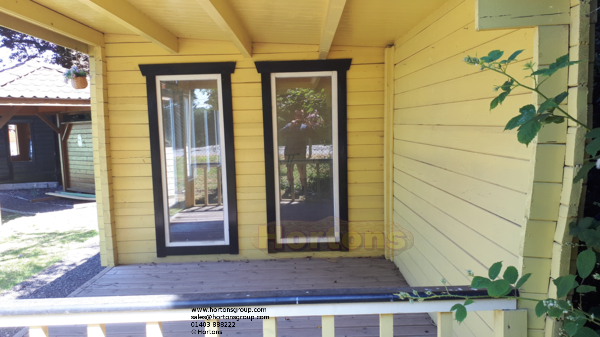

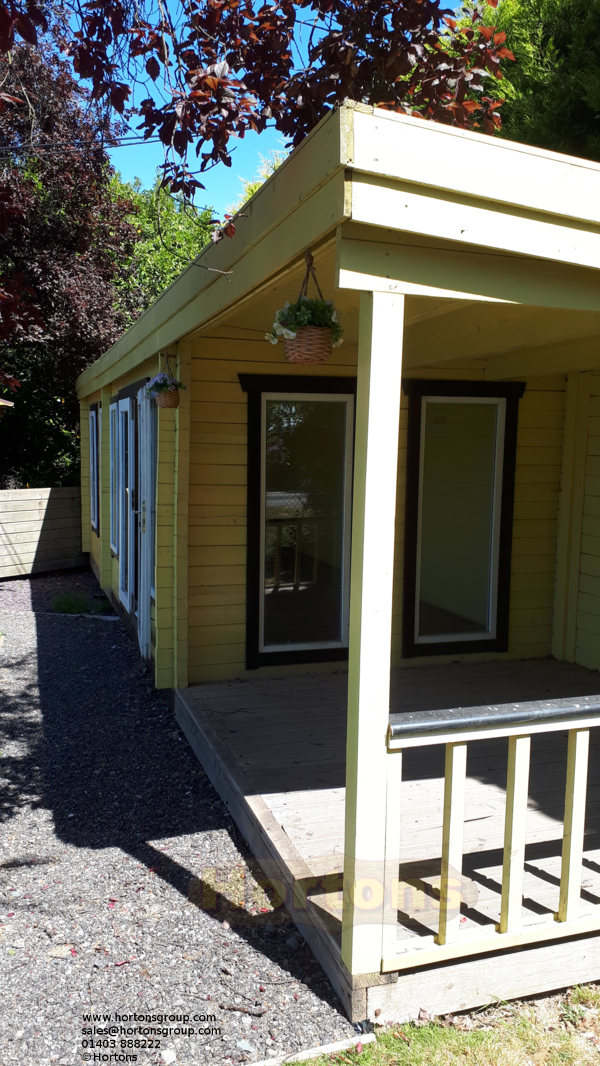

  • Covered veranda area with side balustrading
  • Decking within barbecue area
  • Tanalised floor bearers



Garden Cabin Model: 5020-10030
Log Cabin Width: 10m
Log Cabin Depth: 3m
Building Wall Height: 2.1m
Building Ridge Height: 2.5m
4 x 710mm(w) x 1480mm(h) Window
2 x 690mm(w) x 1855mm(h) Window
1 x 1565mm(w) x 1855mm(h) Double Door

We make all Hortons log cabins from slow grown spruce timber. Double glazed windows and doors are standard for all Hortons Log Cabins of wall thickness 35mm and above. 28mm Log cabins come with single glazing as standard ( Upgrade is available). We fit your glass for free before delivery, unlike some of our competitors. Hortons cabin doors come with special security hinges which are also adjustable. It is not possible to unscrew our log cabin doors from their frame to gain access - we use special security hinges which are also fully adjustable. We can add extra doors and windows to any Hortons Log Cabin, call us for details & quotes. Minimum purlin size for Hortons log cabins is 70x140mm and no greater than 600mm apart for a very strong roof



CHOOSE YOUR LOG CABIN WALL THICKNESS:-

10x3m Pent roof Leisure log cabin

10x3m Pent roof Leisure log cabin

£7,577.84

CUSTOMISE YOUR CABIN WITH THESE OPTIONS:-





I want to modify the size/design of this building












Roofing Felt in Rolls

(NB - not recommended for exposed or windy sites)




EPDM rubber roofing, easy self-installation









Not required

Required for pent roof

Glazing upgrade (for standard windows and doors only)







(Georgian bars are not a free option with these windows)




Face fitting - require simple on site installation (air holes are pre-drilled)




Not required

Upgrade to house quality 68mm glulam wood windows and doors

Inward opening tilt & turn windows & external outward opening doors, all with multipoint keyed locks





Upgrade your log cabin with uPVC windows and doors











uPVC handle and hinge colour










Extra partition walling (extra charges will apply if factory painting and/or installation is also required)





Column corners - fully boxed in log ends

Protect your cabin corners and upgrade your wind bracing





Timber base kit

Planning rules dictate that garden buildings are under 2.5m from ground level if within 2m of any boundary INCLUDING the base. Otherwise planning permission will be required.





Weed and damp-proof membranes






Roof & floor insulation kit for single skin cabin






Floor Upgrade





Guttering

NB - if you choose water butts please bear in mind that you will also need an extra hard standing area - they cannot be installed onto grass or dirt







Fire protection coating Class B - s1,d0 (ie better than UK Building regulations Class 0)






Factory painting - timber is planed, not sanded before treatment is applied

(NB you will need to order extra tins of paint if you intend to paint your ceiling/roof overhangs/canopies to match the walls)









Click to open Teknos colour chart CLICK TO CLOSE

CLICK TO CLOSE

Please type your colour choice from the Teknos colour chart in the text box




Click to open Remmers colour chart CLICK TO CLOSE

CLICK TO CLOSE

Please choose if you have opted for Remmers factory or self applied





Sadolin Classic & Remmers = translucent, Superdec = semi-opaque - enough for 2 coats to the external walls (you will need to order extra tins of paint if you intend to paint your ceiling/roof overhangs/canopies to match the walls)




Click to open Sadolin colour chart CLICK TO CLOSE

CLICK TO CLOSE

Please choose if you have opted for self applied Sadolin











Gold star base coat (self-application)






Bundled discount paints deal! Big savings - save over 15%!

Sale price - discounts available with our paints and timber treatments bundle





Cabin images on our website may also show optional extras (roof coverings, verandas etc). The paint colour images on our website may vary to the colour of treatment you purchase. You should try a sample pot first - paints & stains are non-returnable.

All surfaces (internal and external) of your log cabin must be painted with an appropriate timber treatment or sealer



Installation service for log cabins and timber buildings











Other items that you may want to enquire about






Our Price From: £7,577.84

How it works

You can add as many buildings as you like to your quote. Then you can review your options later in 'Your Quotes'.

If you need more information or would like to change or confirm any options you can submit your no obligation quote to us.

We'll check it over and contact you with any further information you have requested and also confirm prices including options like delivery or installation.
Note: By submitting your quoteyou are not buying anything nor are you obliged to buy anything.

10 x 3 Pent roof Twinskin log cabin

10 x 3 Pent roof Twinskin log cabin

£10,187.45

CUSTOMISE YOUR CABIN WITH THESE OPTIONS:-





I want to modify the size/design of this building












Roofing Felt in Rolls

(NB - not recommended for exposed or windy sites)




EPDM rubber roofing, easy self-installation









Not required

Required for pent roof

Glazing upgrade (for standard windows and doors only)







(Georgian bars are not a free option with these windows)




Face fitting - require simple on site installation (air holes are pre-drilled)




Not required

Upgrade to house quality 68mm glulam wood windows and doors

Inward opening tilt & turn windows & external outward opening doors, all with multipoint keyed locks





Upgrade your log cabin with uPVC windows and doors











uPVC handle and hinge colour










Extra partition walling (extra charges will apply if factory painting and/or installation is also required)






Column corners - fully boxed in log ends

Protect your cabin corners and upgrade your wind bracing





Timber base kit

Planning rules dictate that garden buildings are under 2.5m from ground level if within 2m of any boundary INCLUDING the base. Otherwise planning permission will be required.





Weed and damp-proof membranes






Floor Upgrade





Twinskin insulation kit







Guttering

NB - if you choose water butts please bear in mind that you will also need an extra hard standing area - they cannot be installed onto grass or dirt







Fire protection coating Class B - s1,d0 (ie better than UK Building regulations Class 0)






Factory painting - timber is planed, not sanded before treatment is applied

(NB you will need to order extra tins of paint if you intend to paint your ceiling/roof overhangs/canopies to match the walls)









Click to open Teknos colour chart CLICK TO CLOSE

CLICK TO CLOSE

Please type your colour choice from the Teknos colour chart in the text box




Click to open Remmers colour chart CLICK TO CLOSE

CLICK TO CLOSE

Please choose if you have opted for Remmers factory or self applied





Sadolin Classic & Remmers = translucent, Superdec = semi-opaque - enough for 2 coats to the external walls (you will need to order extra tins of paint if you intend to paint your ceiling/roof overhangs/canopies to match the walls)




Click to open Sadolin colour chart CLICK TO CLOSE

CLICK TO CLOSE

Please choose if you have opted for self applied Sadolin











Gold star base coat (self-application)






Bundled discount paints deal! Big savings - save over 15%!

Sale price - discounts available with our paints and timber treatments bundle





Cabin images on our website may also show optional extras (roof coverings, verandas etc). The paint colour images on our website may vary to the colour of treatment you purchase. You should try a sample pot first - paints & stains are non-returnable.

All surfaces (internal and external) of your log cabin must be painted with an appropriate timber treatment or sealer



Installation service for log cabins and timber buildings











Other items that you may want to enquire about






Our Price From: £10,187.45

How it works

You can add as many buildings as you like to your quote. Then you can review your options later in 'Your Quotes'.

If you need more information or would like to change or confirm any options you can submit your no obligation quote to us.

We'll check it over and contact you with any further information you have requested and also confirm prices including options like delivery or installation.
Note: By submitting your quoteyou are not buying anything nor are you obliged to buy anything.

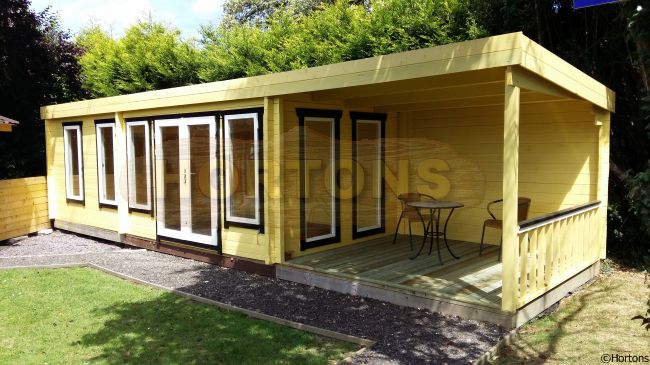

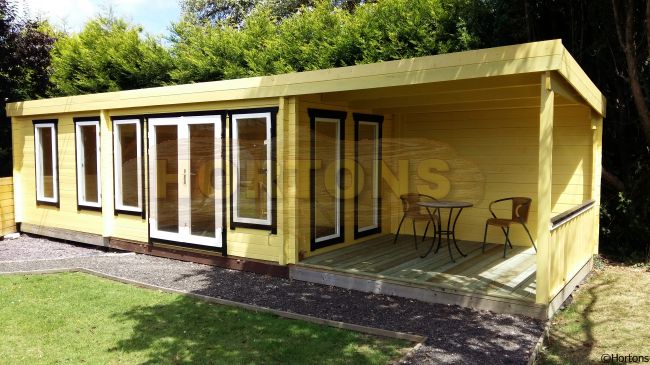

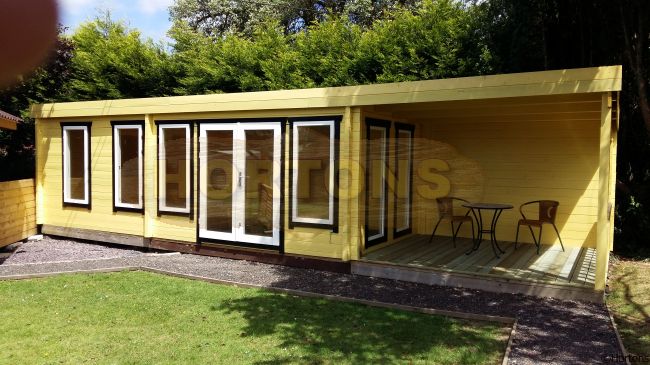

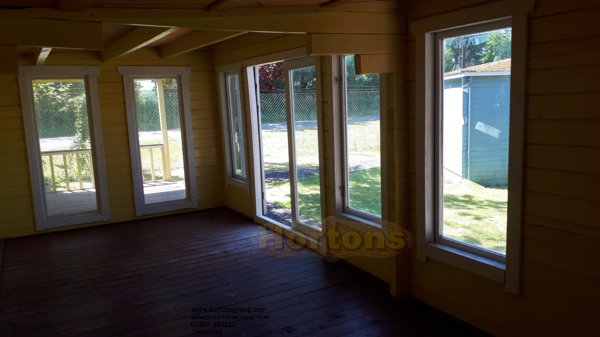

A fantastic garden cabin designed to fit across the end of  your garden. It has a large 7m wide room suitable for a summerhouse, hobby room or games room as it is filled with light from all of the windows and doors. The covered side area can be used for barbecues, dining or just lazing around during the summer months.

We have this large log cabin on display in our showground where you can come and see it for yourself - you won't be disappointed!
