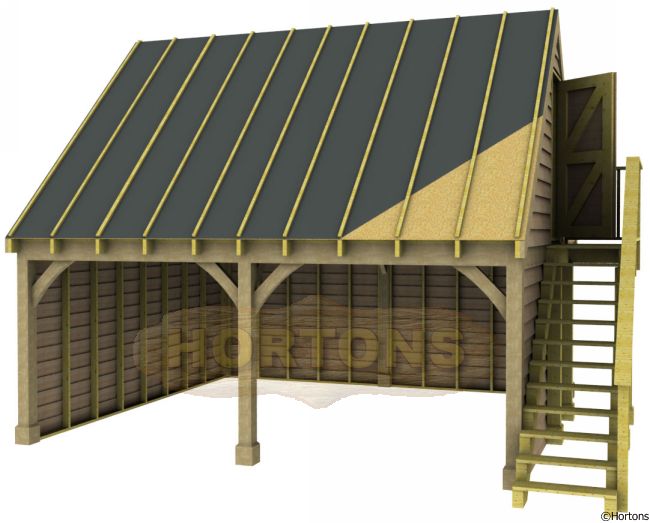

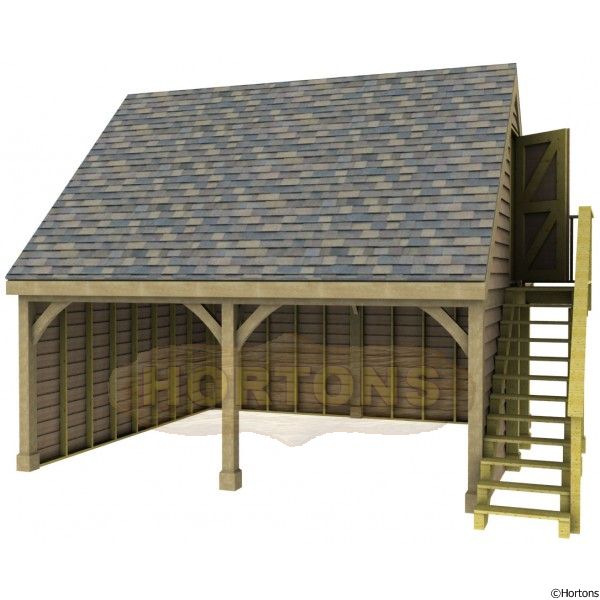

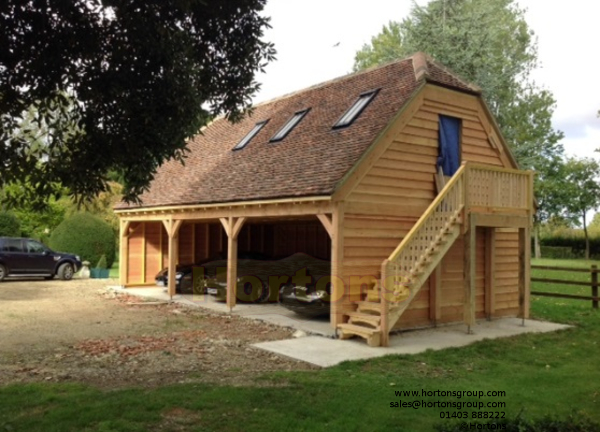

Traditional 2 Bay Post and Beam Room Above Garage

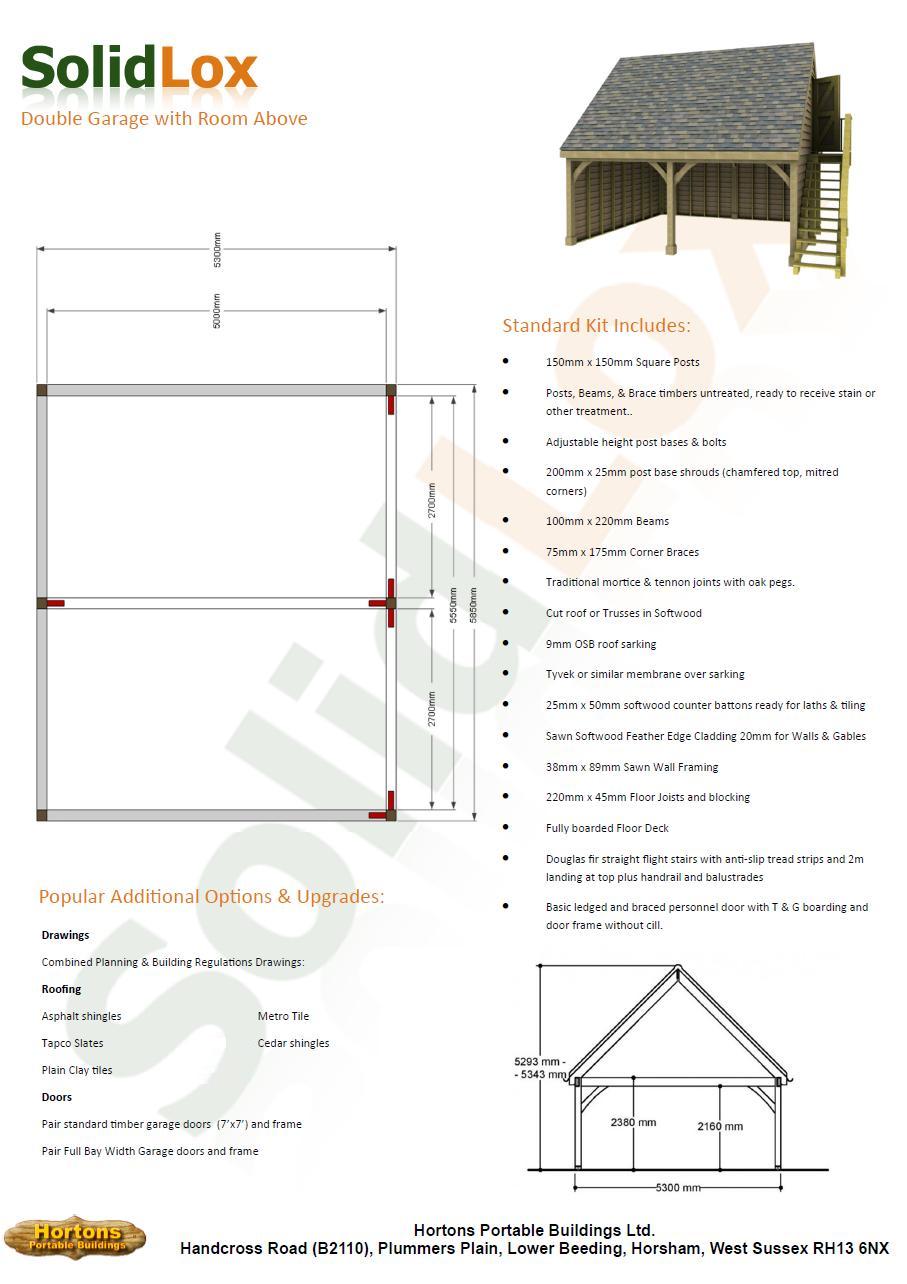

Standard Specifications:

• 150mm x 150mm Square Structural Timber Posts, sawn or planed finish
• 100mm x 220mm Structural Timber Beams, sawn or planed finish
• 75mm x 175mm Corner Timber Braces, sawn or planed finish

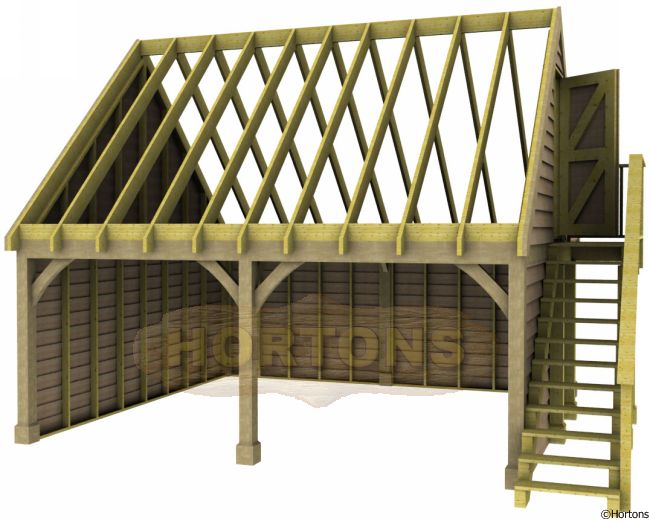

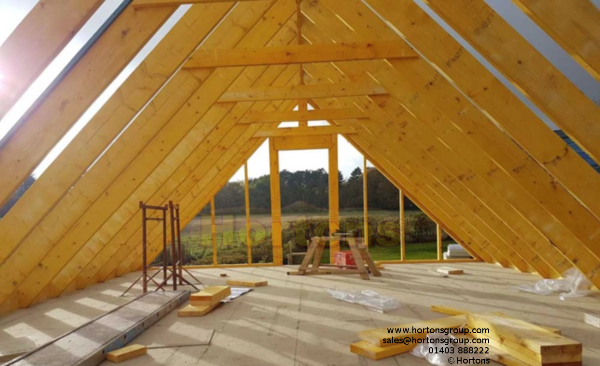

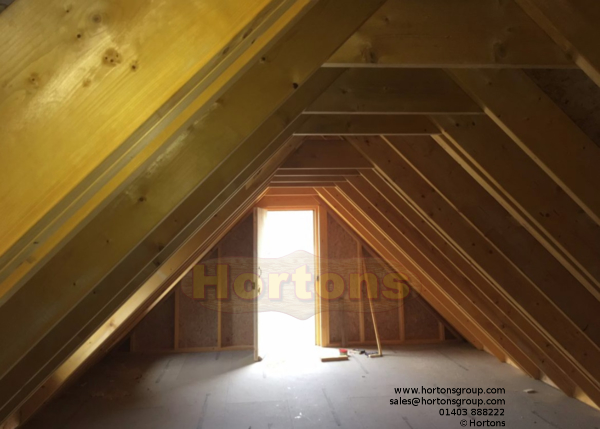

• Softwood rafters or trussed roof (depending on design), sawn finish
• 9mm OSB3 roof sarking board
• Tyvek or similar roof breather membrane over sarking
• 25mm x 38mm softwood counter-battens ready for roofing laths & tiling
• Sawn softwood20mm featheredged cladding for walls & gables
• 38mm x 89mm sawn wall stud framework
• Adjustable height metal post bases & anchor bolts
• Post, beam, brace & cladding timbers are untreated, ready to receive stain or other treatment.
• Softwood framework & roofing timbers are pressure treated with Protim E406 UC2
• High pitch 45 degree side gable roof, Ridge = 5293mm - 5343mm

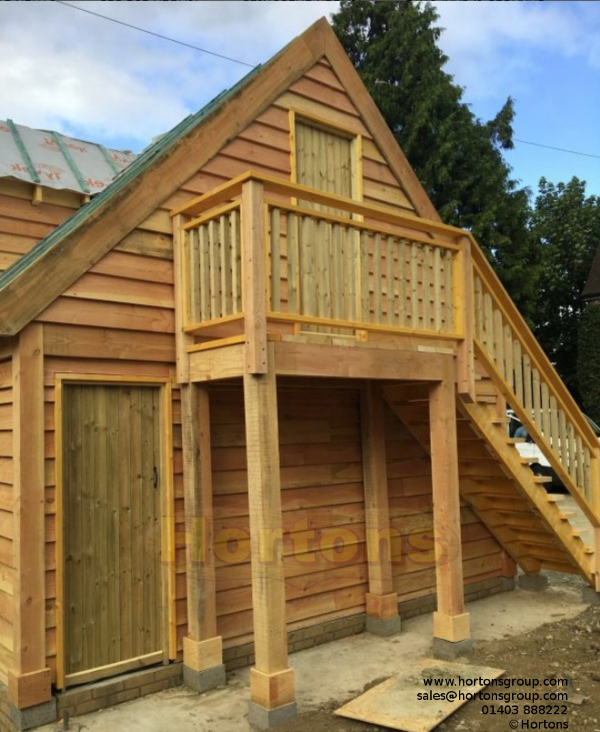

• External staircase

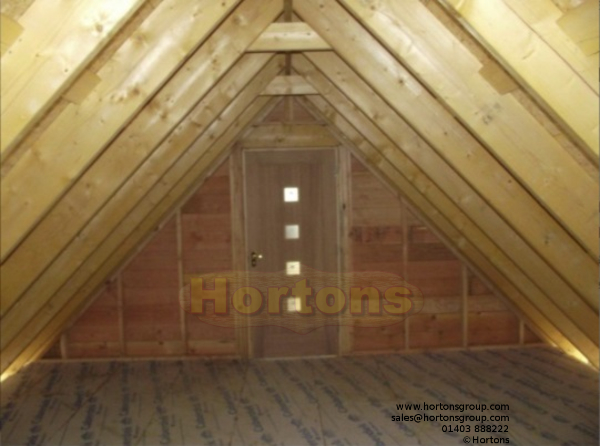

• Access door at top of stairs for upstairs room

There are also a wide variety of complimentary products and optional upgrades available for this post and beam garage

• Roof Coverings
• Cladding
• Garage
• Personnel Doors
• Windows

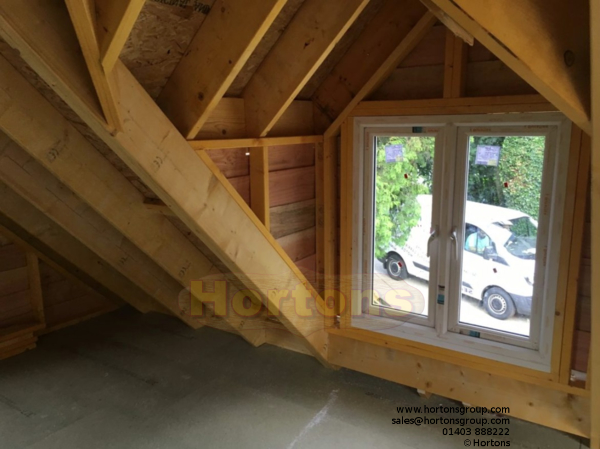

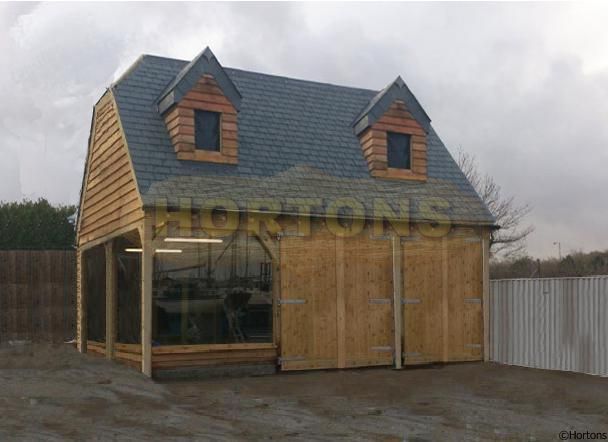

• Dormers
• Staircases

Additional Information for this room above 2 bay garage

Number Of Bays -     2
Min. Clearance Height - 2.160m
Max. Clearance Height - 2.210m
External Width - 5.850m
External Depth - 5.300m
Internal Width - 5.550m
Internal Depth - 5.000m

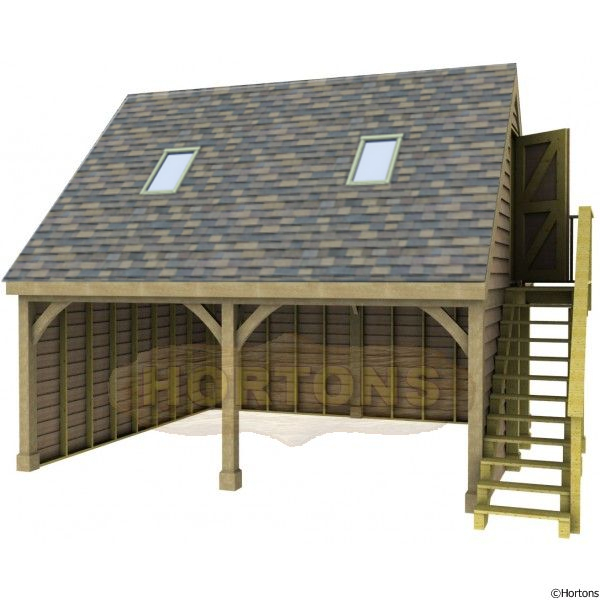

Price for dormer windows or Rooflights on application

Please click here for the additional terms and conditions covering Solidlox buildings (bottom half of page)
