Sports Changing Rooms - fully insulated (11m x 6m)


Starting at: £28,396.84

Scroll down to choose the options you require for your Online Quote:

I want to modify the size/design of this building




Upgrade doors and windows (all with toughened glass)








Felt Shingles (self bonding - 10 year manufacturers warranty and lifespan of up to 30 years)






Black hexagonal

Green hexagonal

Red hexagonal

Black square

Red square

Glazing upgrade (for standard windows and doors only)





Extra partition walling (extra charges will apply if factory painting and/or installation is also required)





Timber base kit

Planning rules dictate that garden buildings are under 2.5m from ground level if within 2m of any boundary INCLUDING the base. Otherwise planning permission will be required.




Weed and damp-proof membranes





Twinskin insulation kit







Guttering

NB - if you choose water butts please bear in mind that you will also need an extra hard standing area - they cannot be installed onto grass or dirt









Fire protection coating Class B - s1,d0 (ie better than UK Building regulations Class 0)





Factory painting - timber is planed, not sanded before treatment is applied

(NB you will need to order extra tins of paint if you intend to paint your ceiling/roof overhangs/canopies to match the walls)








Please type your colour choice from the Teknos colour chart in the text box




Please choose if you have opted for Remmers factory or self applied




Sadolin Classic & Remmers = translucent, Superdec = semi-opaque - enough in tins for 2 coats to the external walls




Please choose if you have opted for self applied Sadolin







Gold star base coat (self-application)





Bundled discount paints deal! Big savings - save over 15%!

Sale price - discounts available with our paints and timber treatments bundle





Cabin images on our website may also show optional extras (roof coverings, verandas etc). The paint colour images on our website may vary to the colour of treatment you purchase. You should try a sample pot first - paints & stains are non-returnable.

All surfaces (internal and external) of your log cabin must be painted with an appropriate timber treatment or sealer


Installation service for log cabins and timber buildings









Other items that you may want to enquire about




There are many variables involved in building large log cabins or timber framed buildings. We can quote once the final design and specification has been decided (ie. Factory painting)

Installation service for large timber buildings





Changing Rooms Specification - 45+45mm Twinskin





Log Cabin Dimensions




  • Outer wall log thickness: 45mm
  • Wall insulation cavity: 50mm
  • Inner wall log thickness: 45mm
  • 11.0m overall cabin width
  • 6.0m overall cabin depth
  • Minimum base width required : 10.80 m
  • Minimum base depth required : 5.80 m
  • Wall height : 2.4 m
  • Ridge height : 3.3 m
  • T&G roof board thickness : 19 mm
  • T&G floor board thickness : 28mm

Also Included With This Clubhouse




  • 2 changing rooms
  • 1 kit room
  • High level double glazed fixed ISO single windows (1000x350mm) : 5
  • Fully boarded single doors (2100x850mm) : 3
  • Tanalised floor bearers : included

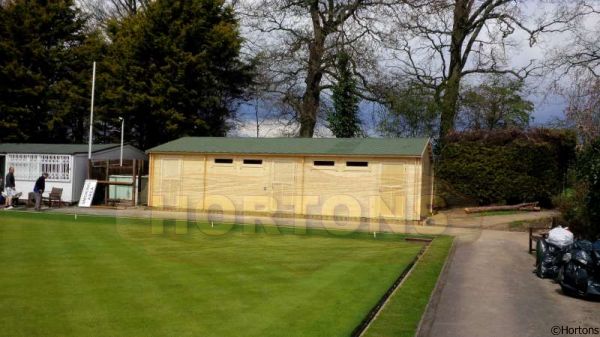

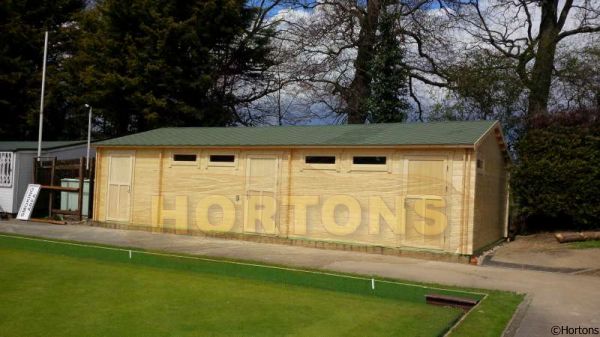

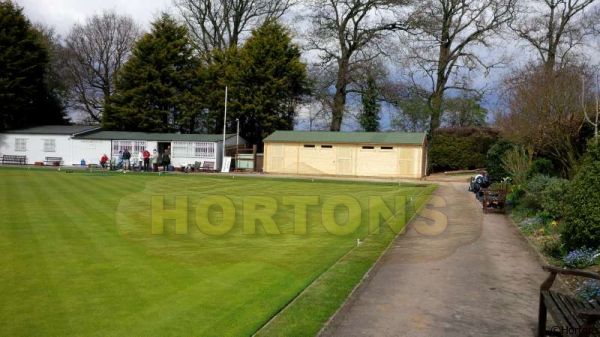

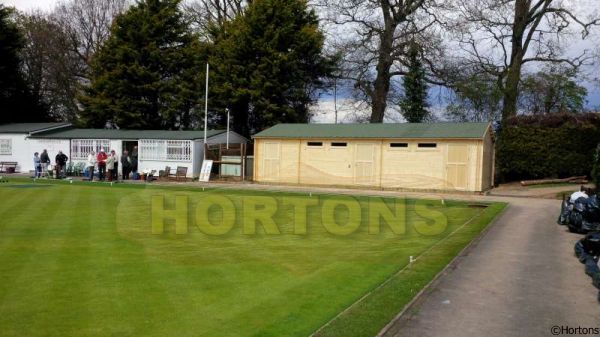

The changing room log cabin is a flexible design and can be made to suit your required size, with internal partitions positioned wherever you require. It can be used for many sports such as bowls, croquet, lacrosse, cricket, tennis or football - basically any sport that requires a change of attire whether that be just for changing shoes or your entire kit.

This is a twinskin cabin (insulation cavities in the roof, walls and floor) and therefore can meet certain insulation values which may be required in order to comply with council regulations.

The high level windows are fixed windows (but can be openers if required) and have frosted glass as standard.





  • Model: 9197-160-4545-29s
  • Manufactured by: Hortons
